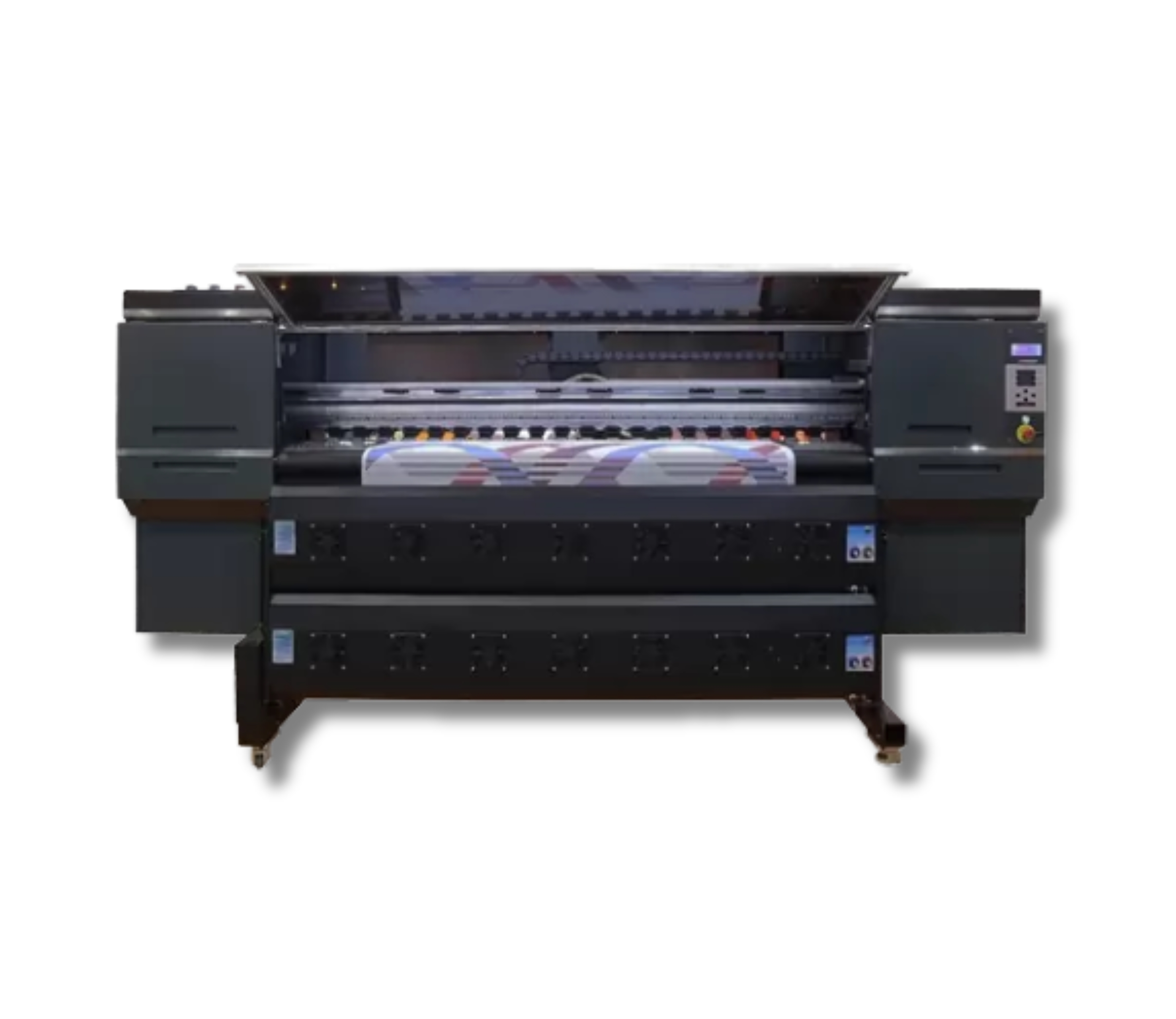

FD 6194 Plotter

Specs:

Print head: 4*EPSON I3200-A1
Print head resolution: 3200 DPI
Print speed: 150 m²/h
Print width: 1900 mm
Ink: Dye-sublimation ink
Media: Sublimation transfer paper
RIP software: Photoprint , Inedit.

Characteristic:

– High-resolution print head : 4 Epson I3200-A1 print heads, the speed of 2 passes can reach up to 150㎡/h
– High-end software : Using international high-end software, the drawing is more realistic.
– Intelligent out-of-ink alarm : Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time to ensure the continuity of the printing job.
– Use of the advanced capping station: Equipped with advanced intelligent print head cleaning and moisturizing device, providing safe and convenient print head cleaning and maintenance functions, more convenient operation and maintenance.
– Intelligent Fog Printing and VSDT Printing : Unique two-dimensional intelligent fog and wave fog function, and VSDT variable droplet technology, improve the printing quality obviously.
– Stable media feed and take-up system : Convenient, media is stored quickly, equipped with automatic paper metering and anti-chafing function, consumables are deformed, printing stops automatically to avoid scratching the print head.

Details:

– Specially designed car : The position of the print head can be adjusted according to different printing media, and anti-collision devices at both ends to give the print head more comprehensive safety protection.
– Chinese Lead Motor : Leadshine bi-directional brushless motor has higher precision, smaller length error and more stable performance.
– Large Capacity Ink Tanks : Four 3L large capacity ink tank units independently and continuously supply ink, ensuring long-term continuity of ink production.
– Intelligent hot air dryer: Intelligent drying system synchronizes with printing, saving energy and reducing emissions. During the printing process, the temperature can be adjusted in real time according to the actual situation.
– THK Mute Guide Rail: Using Japanese THK silent linear guide rail, the movement is more stable and the service life is longer.
– Germany IGUS Ink String : High-quality imported German IGUS ink string to ensure successful print job completion.
– Fluororubber pressure roller : The US fluororubber pressure roller prevents static electricity from blowing ink away, printing more accurately and rejecting wrinkles.
–Two-level ink supply system: Adopt two-level ink supply system, continuous printing for a long time to ensure the output image quality.
