What is sublimation printing and how does it work?

Sublimation is a printing technique that uses heat to transfer special ink (sublimation ink) onto polyester-coated materials or polyester garments. It is very popular for customizing T-shirts, mugs, cases, pillows, keychains, and more.

Our products

Plotter EPSON F570

1 PrecisionCore® Micro TFP® printhead
- INK TYPE
  Epson UltraChrome DS sublimation ink (4 colors).
- MAX RESOLUTION
  2400 dpi x 1200 dpi.
- DIMENSIONS (W × D × H)
  970 mm × 577 mm × 245 mm.
- DISPLAY
  4.3-inch touchscreen LCD.
- CONNECTIVITY
  High-speed USB 3.0, Wireless LAN (802.11 b/g/n), and Wired Ethernet (1000 Base-T / 100 Base-TX / 10 Base-T).
Maintenance
- Daily power-on (even if you don't print)
  Helps the inks circulate and prevents bubbles from forming or drying out in the heads.
- Automatic cleaning activated
  Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.
- Keep the capping station, dampers, and wiper clean
  These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.
- Control the ambient humidity
  Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.
- Check feed rollers and trays
  If they are dirty, they mark the paper or generate banding.
- Use the equipment at least 3–4 times per week
  Sublimation plotters need constant ink movement.
Max width: 620 mm (24'')

Speed: 62 seconds (for A1/D size)

Media: Sublimation transfer paper for textiles and rigid materials

See more

Request a quote
Plotter FD6194E

4 cabezales Epson I3200
- HIGH-RESOLUTION PRINT HEAD 4 Epson I3200-A1 print heads, 2-pass speed can reach up to 150㎡/h.
- HIGH-END SOFTWARE Using international high-end software, the drawing is more realistic.
- INTELLIGENT LACK OF INK ALARM Reduces the tediousness of frequently checking the remaining ink quantity, and at the same time, reminds you to add ink in time to ensure the continuity of the printing job.
- USE OF ADVANCED CAPPING STATION Equipped with an advanced intelligent print head cleaning and moisturizing device, which provides safe and convenient maintenance and cleaning functions, with simpler operation and upkeep.
- INTELLIGENT MIST PRINTING AND VSDT PRINTING The unique intelligent two-dimensional mist and wave-mist function, along with VSDT variable droplet technology, significantly improves the printing quality.
- STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast, printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function; if consumables are deformed, the printing automatically stops to prevent scratching the print head.
- SPECIALLY DESIGNED CARRIAGE The position of the print head can be adjusted according to different printing media and anti-collision devices on both ends to give the print head more comprehensive safety protection.
- LEADSHINE CHINESE MOTOR The Leadshine two-way brushless motor has higher precision, smaller length error, and more stable performance.
- LARGE CAPACITY INK TANKS Four units of 3L large-capacity ink tanks provide ink independently and continuously, ensuring the long-term continuity of ink output.
- INTELLIGENT HOT AIR DRYER The intelligent drying system synchronizes with the printing, saving energy and reducing emissions. During the printing process, the temperature can be adjusted in real-time according to the situation.
- THK SILENCE GUIDE RAIL Uses the Japanese THK silent linear guide rail, which provides more stable movement and a longer service life.
- IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, ensuring the good completion of the printing work.
- FLUORINATED RUBBER PINCH ROLLER The US fluorinated rubber pinch roller prevents static electricity from flying ink, prints more accurately, and reduces wrinkles.
- TWO-LEVEL INK SUPPLY SYSTEM Adopts a two-level ink supply system, with continuous printing for a long time to ensure the image output quality.
- COMPATIBILITY Win 7 / Win 8 / Win 10.
Maintenance
- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.
- Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.
- Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.
- Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.
- Check feed rollers and trays If they are dirty, they mark the paper or generate banding.
- Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
Max width: 1900mm

Speed: 150m2/h

Media: Transfer paper

See more

Request a quote
Plotter FD6198E

8 cabezales Epson I3200
- HIGH-RESOLUTION PRINTHEAD 8 Epson I3200-A1 printheads; 1-pass speed can reach up to 320 m²/h.
- SMART LOW-INK ALARM Reduces the need to frequently check remaining ink levels and reminds you to add ink in time to ensure continuous printing workflow.
- STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast; media is quickly loaded, equipped with automatic paper measurement and anti-scratch function. If the consumables deform, printing stops automatically to prevent head strikes.
- ADVANCED CAPPING STATION Equipped with an advanced intelligent printhead cleaning and moisturizing system, providing safe and convenient maintenance and cleaning functions with simpler operation.
- SPECIALLY DESIGNED CARRIAGE The printhead position can be adjusted according to different printing media, with anti-collision devices on both sides.
- SMART HOT-AIR DRYER The intelligent drying system is synchronized with printing. Temperature can be adjusted in real-time during the printing process.
- FLUORORUBBER PRESSURE ROLLER The U.S. fluororubber pressure roller prevents static electricity. The exclusive lifting device compensates for partial paper bulging during the printing process.
- HIGH-PRECISION PLATFORM The printing platform is controlled within ±7.5 wires and features hard oxidation treatment on the surface to prevent long-term deformation.
- THK SILENT GUIDE RAIL Uses Japanese THK silent linear guide rail for smoother movement and longer service life.
- LEADSHINE SERVO MOTOR The bidirectional brushless Leadshine motor offers higher precision, lower length deviation, and more stable performance.
- LARGE-CAPACITY INK TANKS Four 3L large-capacity ink tanks supply ink independently and continuously.
- IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, ensuring excellent printing performance.
- COMPATIBILITY Win 7 / Win 8 / Win 10.
Maintenance
- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.
- Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.
- Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.
- Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.
- Check feed rollers and trays If they are dirty, they mark the paper or generate banding.
- Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
Max width: 1900mm

Speed: 320 m²/h

Media: Thermal transfer paper

See more

Request a quote
Plotter FD 5193

3 cabezales Epson I3200
- HIGH-PRECISION PRINT HEAD 3 Epson I3200-A1 print heads, 2-pass speed can reach up to 120㎡/h.

  ADVANCED CAPPING STATION Equipped with an advanced intelligent automatic print head cleaning and moisturizing device, which can pump ink well and maintain fluent ink flow.

  INTELLIGENT LACK OF INK ALARM Reduces the tediousness of frequently checking the remaining ink quantity, and at the same time, reminds you to add ink in time to ensure the continuity of the printing job.

  INTELLIGENT MIST PRINTING AND VSDT PRINTING The unique intelligent two-dimensional mist and wave-mist function, and VSDT variable droplet technology, obviously improve the printing quality.

  STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast, printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function; if consumables are deformed, the printing automatically stops to prevent scratching the print head.

  WIDE APPLICATION With the help of the heat transfer machine, the printed images can be transferred to many different non-elastic materials, such as polyester, chiffon, silk, and flags. There is no limit to the patterns, making it a good choice in the field of decoration, clothing, and advertising.

  SPECIALLY DESIGNED CARRIAGE The position of the print head can be adjusted according to different printing media and anti-collision devices on both ends to give the print head more comprehensive safety protection.

  THK SILENCE GUIDE RAIL Using the imported Japanese THK silent linear guide rail to effectively reduce resistance and noise during the printer's operation.

  LARGE CAPACITY INK TANKS Four units of 3L large-capacity ink tanks provide ink independently and continuously, ensuring the long-term continuity of ink output.

  INTELLIGENT HOT AIR DRYER The intelligent integrated air and heat dryer, two-stage heating, middle hot air, and intelligent start-stop technology ensure drying performance and greater energy savings at the same time.

  LEADSHINE CHINESE MOTOR The Leadshine two-way brushless motor has higher precision, smaller length error, and more stable performance.

  IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, to ensure the good completion of the printing work.

  FLUORINATED RUBBER PINCH ROLLER The US fluorinated rubber pinch roller prevents static electricity from flying ink, prints more accurately, and avoids wrinkles.

  TWO-LEVEL INK SUPPLY SYSTEM Adopts a two-level ink supply system that allows continuous printing for a long time to ensure the image output quality.

  COMPATIBILITY Win 7 / Win 8 / Win 10.
Maintenance
- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.

  Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.

  Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.

  Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.

  Check feed rollers and trays If they are dirty, they mark the paper or generate banding.

  Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
Max width: 1900

Speed: 120 m²/h

Media: Transfer paper

See more

Request a quote

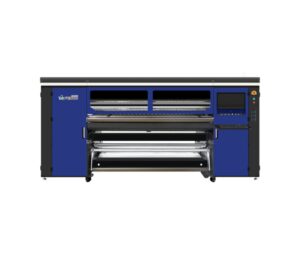

Plotter FD61915E

15 Epson I3200 printheads
- PRINTER 15 heads
- PRINTING SPEED 1 pass 610 m²/h
- PRINT WIDTH 1900 mm
- COMPATIBLE MEDIA Heat transfer paper
- COMPATIBILITY Win 7 (64 bit) / Win 10 (64 bit)
Maintenance
- Daily power-on (even if you don't print) Helps the inks circulate and prevents bubbles from forming or drying out in the heads.

  Automatic cleaning activated Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.

  Keep the capping station, dampers, and wiper clean These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.

  Control the ambient humidity Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.

  Check feed rollers and trays If they are dirty, they mark the paper or generate banding.

  Use the equipment at least 3–4 times per week Sublimation plotters need constant ink movement.
Max width: 1900mm

Speed: 610 m²/h

Media: Thermal Transfer Paper

See more

Request a quote

Frequently Asked Questions

1. How is the design prepared for sublimation?

The design is created in programs such as Photoshop, Illustrator, or CorelDRAW, and printed in mirror mode so it appears in the correct orientation when transferred. It is essential to use sublimation inks and a compatible printer, such as Epson models with piezoelectric printheads.

2. What type of paper is used to print the designs?

It is printed on special sublimation paper, designed to hold the ink without fully absorbing it. It is important to let the print dry completely before proceeding with the heat transfer.

3. How is the design transferred to the product?

The printed paper is placed on the garment or compatible surface (polyester or special coating).
A heat press is used, configured with:
Temperature: 180–200 °C
Time: 30–60 seconds
Pressure: Medium

4. What happens during the sublimation process?

The ink goes from solid to gas without becoming liquid. In its gaseous state, it penetrates the polyester fibers or the coating of the object.
When it cools, the ink becomes permanently fixed without leaving a surface layer, ensuring greater durability.
